HHS梳理机

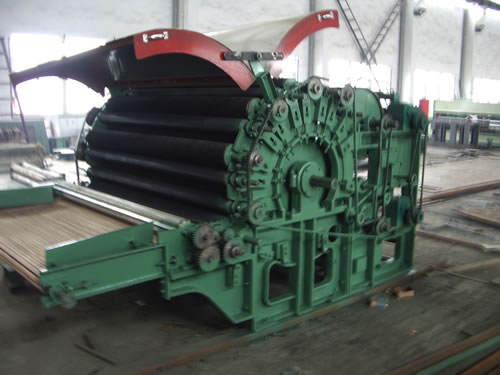

HHS-C1D2单锡林双道夫梳理机
HHS- C1D2 Single-cylinder Double-doffer Carding Machine
用途特点：
适用于1.5D——20D×38——65mm人造纤维梳理。单锡林高速梳理，双道夫出棉，采用斩刀或罗拉剥棉方式，喂入及道夫为变频调速控制，锡林为星-三角起动，装有防金属保护装置。
主要规格：
机    幅：1500mm,1800mm,2000mm,2300mm
锡    林：Φ850mm, Φ1020mm, Φ1230mm
道    夫：Φ492mm, Φ535mm
功    率：10.5Kw——14.7Kw
出网速度: 20——45m/min
Use and characteristics:
Suitable for carding of 1.5D——20D×38——65mm artificial fibre,single cylinder high speed carding and double doffer outputtinghas production capacities.Cotton stripping has been used stripper bar or roller,the cotton feeding roller is controlled by frequency conversion with anti-metal protection device.
Main specification:
Machine width：1500mm,1800mm,2000mm,2300mm
Cylinder diameter：Φ850mm, Φ1020mm, Φ1230mm
Doffer diameter：Φ492mm, Φ535mm
Total power：10.5Kw——14.7Kw
Output speed: 20——45m/min

HHS-C2D2双锡林双道夫梳理机
HHS- C2D2 Single-cylinder Double-doffer Carding Machine
用途特点：
适用于1.5D——20D×38——65mm人造纤维梳理。双锡林高速梳理，使纤维充分分梳，双道夫出棉，采用斩刀或罗拉剥棉方式，喂入及道夫为变频调速控制，装有防金属保护装置。
主要规格：
机    幅：1500mm,1800mm,2000mm,2300mm
胸锡林：Φ635mm, Φ850mm
主锡林：Φ1020mm, Φ1230mm
中道夫：Φ450mm
道    夫：Φ492mm
功    率：16Kw——21Kw
出网速度: 20——45m/min
Use and characteristics:
Suitable for carding of 1.5D——20D×38——65mm artificial fibre,the fibre is carded full so that the mesh become more even through the double cylinder carding at high speed.Cotton stripping has been used stripper bar or roller,the cotton feeding roller is controlled by frequency conversion with anti-metal protection device.
Main specification:
Machine width：1500mm,1800mm,2000mm,2300mm
Primary cylinder diameter：Φ635mm, Φ850mm
Main cylinder: Φ1020mm, Φ1230mm
Middle doffer: Φ392mm
Doffer diameter：Φ492mm
Total power：16Kw——24Kw
Output speed: 20——45m/min
